vScan

vScan Avoidance Tool

The vScan utility avoidance tool has been designed to make buried utility detection a simple and cost-effective process. You don’t need to be an electronics expert to get the most out of the vScan‘s features. Main features and operational controls are in keeping with industry standards so minimal training is required.

Together with the dual frequency transmitter, data logging, optional metal manhole cover detector, GPS, and Bluetooth, the vScan is available in various models to suit all applications.

The vScan locator kits are shipped with a spacious canvas carry bag which fits the receiver, transmitter, leads and any optional accessories.

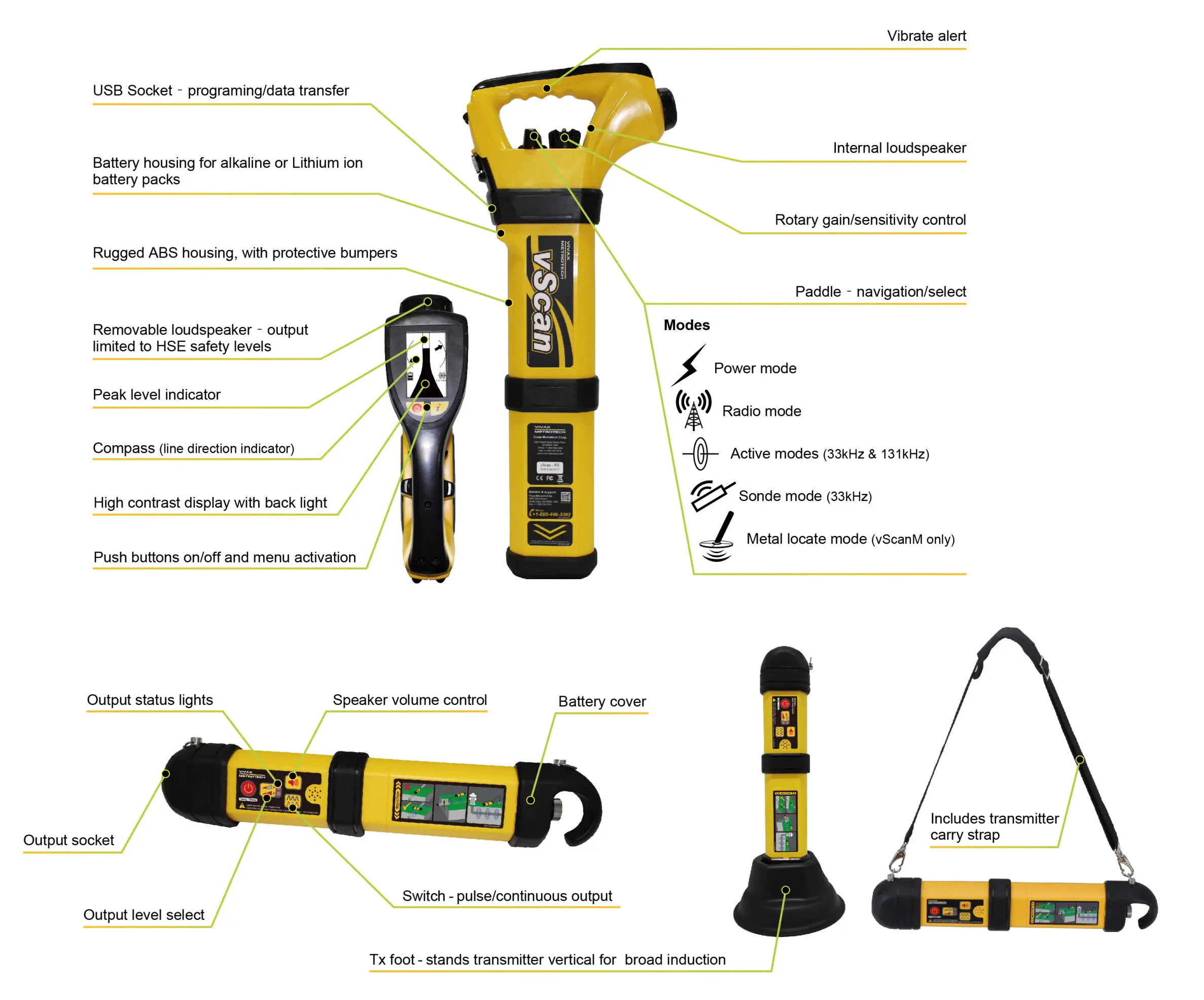

Key Features

Large, high resolution, high contrast dot matrix display: makes signal interpretation simple and intuitive.
Auto backlight: for use after dusk.
Compass line direction indicator: ensures correct alignment over utility
Visual, audible and vibration alerts: alerts can be set for: shallow cable, overload, excessive swinging and overhead cables.
Passive signals: power, radio and also as a free option, cathodic protection (CP) 100Hz.
Current measurement: helps positively identify the targeted line.
Simple two button operation: on/off and information (such as depth and current).
Movable speaker: allows the user to place the speaker against the ear while holding the receiver at arm’s length
Robust ABS casing with rubber protection bumpers for all site condition use.
2GB auto data logging: helps identify usage and training needs.

Downloads	Save
MyvScan Data Managment Mapping Apps Brochure	PDF
vScan Brochure	PDF
MyvScan Brochure	PDF
vScan Technical Specifications	PDF
vScan User Handbook	PDF

MyvScan App

Keep the operating system of the vScan up to date with the free MyvScan Desktop App. The vScan management tool allows the user to configure the features in the locator, download data collected from locating, set alarms useable while locating, and check and update the locator’s firmware.

Software updates – MyvScan checks for locator software updates and desktop software updates whenever connected to internet.
Data transfer – MyvScan will download the data collected from the locator. This data can include the date, time, GPS coordinated, depth measurements, current on the line, and notes entered at the time of locate.
Self-test and calibration verification – MyvScan will perform a test on the locators components assuring that it’s calibration is good and that all functions are working 100 per cent. The test will inform the user if a calibration is needed. If the locator passes the self-test a calibration certificate will be printed.
Personalize – Add owner/user information, a background picture or logo, or a short message to the startup screen.
Lock Feature – The locator’s configurations and settings can be locked, enabling equipment or safety officers to ensure that features selected or removed by management cannot be over ridden by the user. (Requires optional lockout dongle)

VMMap App

When used with Bluetooth enabled Vivax-Metrotech receivers, the VMMap Utility Mapping app records data from the field which is instantly available online via the VMMap Cloud web portal or can be shared by using the email function in the app. Location data is obtained from the mobile phone, or an external GPS device of your choice. Depth readings, GPS coordinates, the distance between locates and more are captured as data logs and can be saved as xls, txt, shp, and kml extension files. The data is compatible with Google Maps, Asset Management, and GIS software.

The image capture feature in the app allows the user to attach a JPEG format image to the surveys. This is useful to add points of interest or a snapshot of the completed survey. Access the image files and all the data captured in the app in the VMMap Cloud web portal or email it from within the app.

The VMMap app generates maps in real time, giving confidence to the field technician that the data being collected is accurate.

Uses both Google and Apple Maps
Low and high GPS accuracy settings
Plug-and-play Bluetooth pairing to receivers
Export to various file types for use with popular GIS programs
Compatible with Google Maps, Asset Management, and GIS software
Show multiple utilities on one map with color-coded utility drop pins
The VMMap Mobile application is compatible with both iOS and Android devices.
