vLoc3-Cam

vLoc3-Cam Sonde Locator

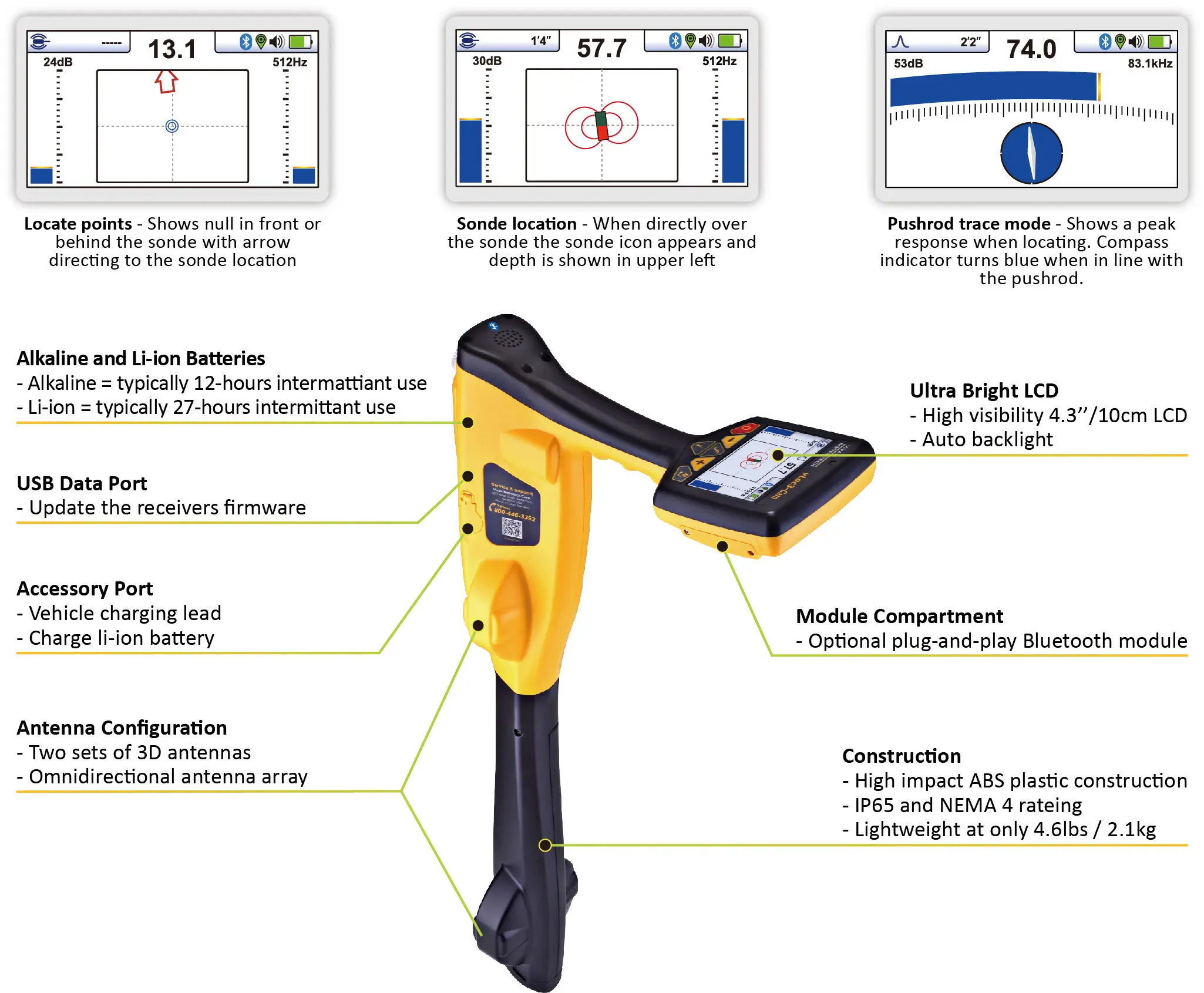

The vLoc3-Cam is the easiest to use sonde locator on the market today. The omni-directional antenna array allows for approaching the sonde from any position. The directional arrows will guide the user first to the front or rear locate point and then directly to the sondes position.

The vLoc3-Cam includes multiple sonde frequencies making it compatible with the major push cameras and crawler cameras on the market. The Pushrod Trace mode shows a second display geared for tracing the path of the pushrod deployed in the pipe or tracing pipes with an optional portable transmitter.

The vLoc3-Cam comes with two Passive locate modes of Power and Radio which will detect the presence of live power lines, CATV, telephone and some metallic pipes which radiate 50/60 Hz from nearby or overhead power lines. For active locating, with the use of a portable transmitter, the vLoc3-Cam comes with an 83.1kHz frequency for tracing the pushrod. This frequency is also ideal for water and gas utilities which generally are larger pipes with bell housings and gaskets as well as locating ungrounded small diameter drop wires and inducing signals through the soil, onto services when direct connecting is not an option.

Key Features

No ghost signals
Graphical locate display
Sonde locate and pushrod trace modes
Optional Bluetooth option for GPS mapping
High visibility color 4.3”/10cm Display

Downloads	Save
Sonde and Sonde Locator Sales Sheet	PDF
vLoc3-Cam Sales Sheet	PDF
vLoc3-Cam Technical Specifications	PDF
vLoc3-Cam User Handbook	PDF
Locating Push Camera Cable Quick Guide	PDF

MyLocator3 Software

Manage a single or fleet of vLoc3 series utility locators with the free MyLocator3 app. Configure locators by turning on or off features, selecting which frequencies the user has access to and creating custom startup screens. When the locator is connected to a computer running the MyLocator3 software, the program will automatically search our database for the latest software for both the utility locator and desktop application. The utility locator connects to the computer running MyLocator3 by supplied USB cable.

Data transfer – MyLocator3 app will download the data collected from the locator including a timestamp, GPS coordinates, depth measurements, current on the line, and notes entered at the time of locate.
Software updates – MyLocator3 checks for locator software updates and app software updates whenever connected to internet.
Personalize – Add owner/user information, a background picture or logo, or a short message to the startup screen.
Lock Feature – The locator’s configurations and settings can be locked, enabling equipment or safety officers to ensure that features selected or removed by management cannot be over ridden by the user. (Requires optional lockout dongle)

VMMap App

When used with Bluetooth enabled Vivax-Metrotech receivers, the VMMap Utility Mapping app records data from the field which is instantly available online via the VMMap Cloud web portal or can be shared by using the email function in the app. Location data is obtained from the mobile phone, or an external GPS device of your choice. Depth readings, GPS coordinates, the distance between locates and more are captured as data logs and can be saved as xls, txt, shp, and kml extension files. The data is compatible with Google Maps, Asset Management, and GIS software.

The image capture feature in the app allows the user to attach a JPEG format image to the surveys. This is useful to add points of interest or a snapshot of the completed survey. Access the image files and all the data captured in the app in the VMMap Cloud web portal or email it from within the app.

The VMMap app generates maps in real time, giving confidence to the field technician that the data being collected is accurate.

Uses both Google and Apple Maps
Low and high GPS accuracy settings
Plug-and-play Bluetooth pairing to receivers
Export to various file types for use with popular GIS programs
Compatible with Google Maps, Asset Management, and GIS software
Show multiple utilities on one map with color-coded utility drop pins
The VMMap Mobile application is compatible with both iOS and Android devices.
