It is inserted into the sewer pipe during repair work and maintenance of the sewer pipe, and used to remove foreign matter and drill holes for repair materials. We handle simple robots, high-performance robots, and German-made sewerage robots made with superior technology.
It is a camera robot that can investigate and photograph the situation inside the sewage pipe using a camera. You can choose a sewage camera robot according to your needs, from those with high-quality CCD cameras to those that are reasonably priced and can be delivered immediately.
Flexible design and advanced manufacturing technology

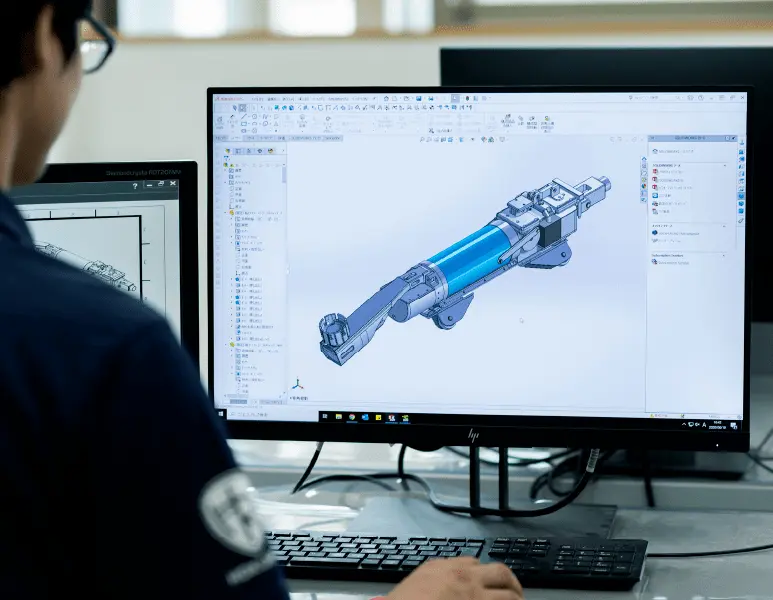

In our long history, we have conducted various hearings and surveys from our customers, and have found solutions each time. This repetition has grown HOKURYO's technological capabilities and has led to our current ability to respond to customers. By making use of our experience, we design flexible sewage inspection/maintenance robots and cameras to meet all kinds of requests, and realize them with our advanced manufacturing technology.
Reduce costs with consistent in-house support
One of HOKURYO's strengths is our one-stop service, from design to after-sales service. We can manufacture sewerage maintenance robots and cameras while investigating and asking about requests in each phase, and we can respond quickly. We contribute to cost reduction for our customers through lean manufacturing with enhanced productivity.
|tree root removal
|Opening a hole in the connecting pipe after rehabilitation work
|Polishing of the mounting pipe mouth
|Correction and removal of spoilage in partial repair work
|Partial repair or removal of spoilage in rehabilitation work

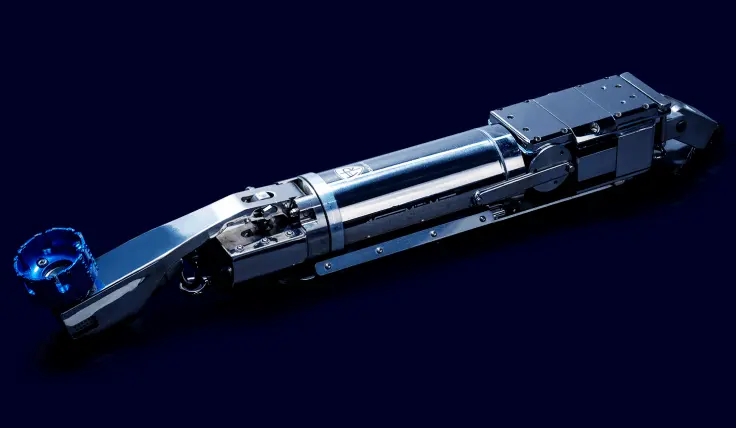

A low-cost, high-performance drilling maintenance robot for sewer mains

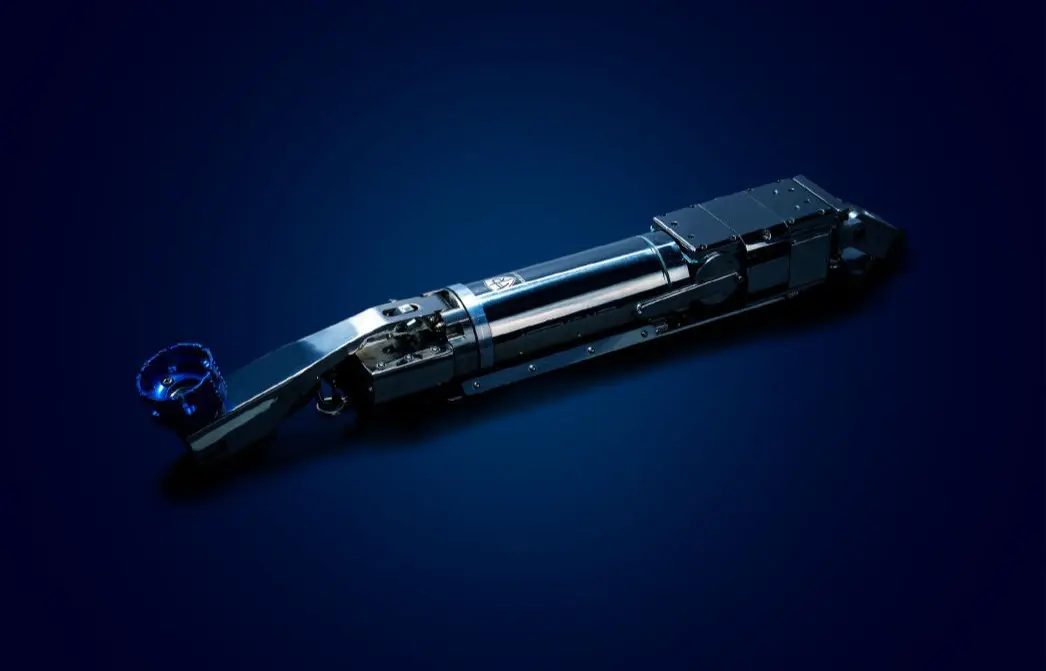

A maintenance robot for sewage mains that can remove foreign matter from sewage pipes and drill and widen holes after pipe rehabilitation work. Instead of excavating (excavating) and replacing aging sewer pipes, we put it into the sewer pipe from the manhole to repair and maintain the inside of the sewer pipe. It is pneumatic and has high cost performance and durability .

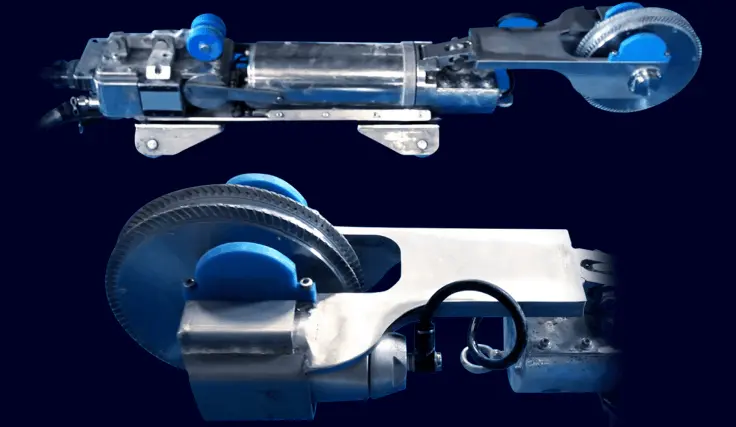

The only maintenance robot that plays an active role in removing lining materials
This is a maintenance robot that can remove the rehabilitation material (= liner) from the rehabilitation pipe (after completion of rehabilitation lining work). Liners are cut at a pressure of 0.7Mpa using a general engine-type compressor. The thickness of reclaimed material that can be cut is 5 mm to 10 mm. It can be used with the Super Mini Mog, but a separate investigation camera robot is required.
A multifunctional sewer main drilling maintenance robot that can handle large diameter pipes

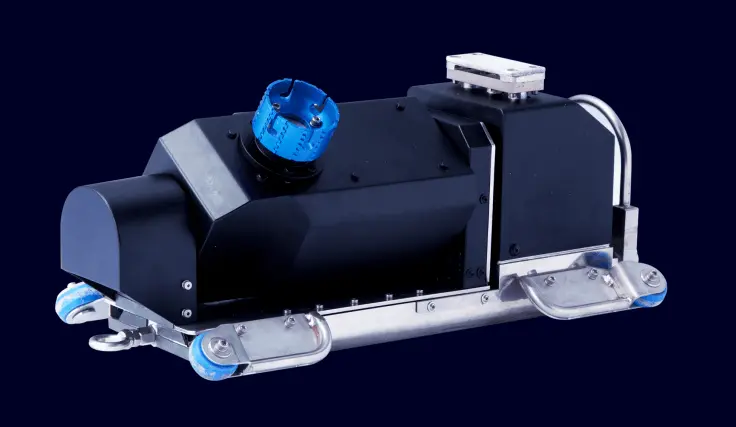

Instead of excavating (excavating) aging sewer pipes and replacing them, this robot is put into the sewer pipe from the manhole to repair and maintain the inside of the sewer pipe. It can be used for "removal of foreign matter in sewage pipes" and "drilling/widening work after pipe rehabilitation work". The compatible pipe diameter is 350-600mm, and it is possible to handle larger pipes. It is pneumatic, environmentally friendly, cost effective, and highly durable.
While grasping the position of the robot , more delicate maintenance work is possible with the attached camera.
A maintenance robot for sewage mains that can perform tasks such as "removing foreign objects in sewage pipes" and "drilling/expanding work after pipe rehabilitation work". Combining the angle sensor and mileage data, it is possible to grasp the approximate drilling position in the rehabilitation pipe, which leads to a reduction in overall work time. In addition, the pneumatic cutting is powerful, and delicate maintenance work can be performed while checking the inside of the pipe with the attached camera.
A compact design sewer maintenance robot that can remove foreign objects, drill holes, and expand small pipes.
It is a maintenance robot for sewage mains, and can perform tasks such as "removing foreign objects in sewage pipes" and "drilling/expanding work after pipe rehabilitation work". Since the sewage robot has a small external size of φ120mm, it can remove foreign objects and drill/expand work at difficult work sites such as sewage pipes with large misalignment or crushed pipes. In addition to being lightweight and self-propelled, it not only reduces the number of workers required, but also allows you to check the inside of the pipe with the attached camera, making it possible to remove foreign objects and drill/expand work in the maintenance and management of delicate sewage systems.
The rubber packer specification enables stable maintenance work at the target location.

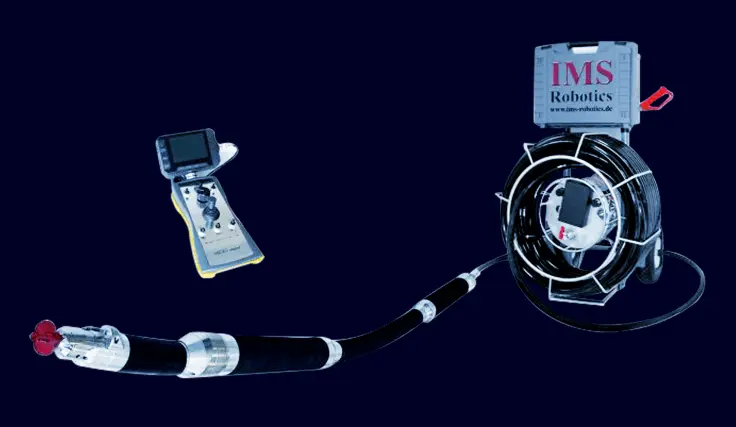

It is a sewerage maintenance robot that can be inserted from the installation pipe side and can "remove foreign matter in the installation pipe (pretreatment)" and "open the installation pipe mouth (temporary drilling)". A camera is attached, so you can perform delicate work while checking the inside of the pipe. In addition, the expansion and contraction of the rubber packer on the main body and the motor allow the robot to move up, down, left, right, forward and backward, and point the robot at the target location. In addition, the rubber packer can be inflated and sticks to the inside of the pipe for stable work.

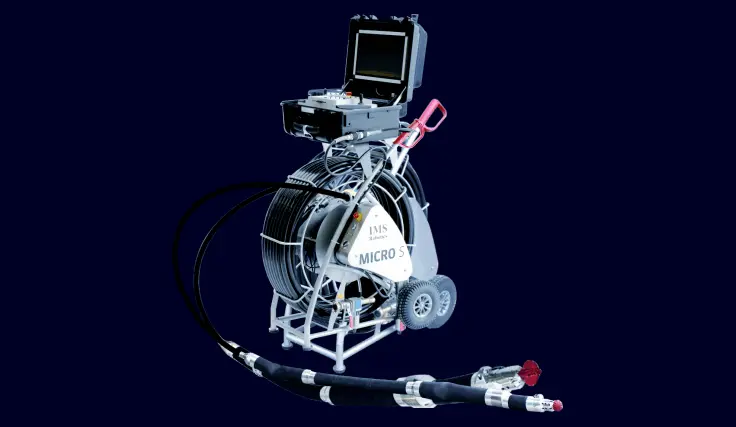

Allows for more precise maintenance work on small pipes
It is a maintenance robot that can be inserted from the mounting pipe side to remove foreign matter inside the mounting pipe (pretreatment) and to open the opening of the mounting pipe (temporary drilling). While maintaining the same performance as the conventional MICRO series, the outer diameter has been reduced by 5 mm, making it easier to insert into pipes that bend at 90 degrees and work inside refurbished φ100 mm diameter mounting pipes. In addition, 360-degree infinite rotation is possible and boasts high operability. Furthermore, the wire is built into the hose, reducing settling during insertion.
Compact and flexible work performance

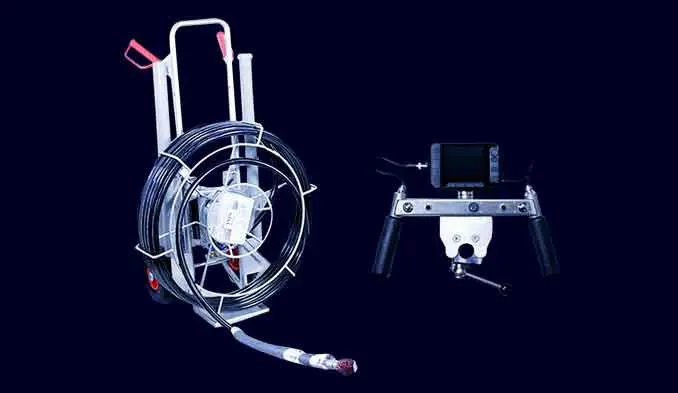

A portable external drilling and maintenance robot that supports small-diameter pipes. Despite its compact size, it is equipped with a powerful pneumatic drilling motor for powerful work. Also, the main cable has great flexibility and can work vertically. In addition, a color camera equipped with a light provides clear images, and vertical movement of the tip packer and horizontal operation of the handle enable more delicate work and maintenance.

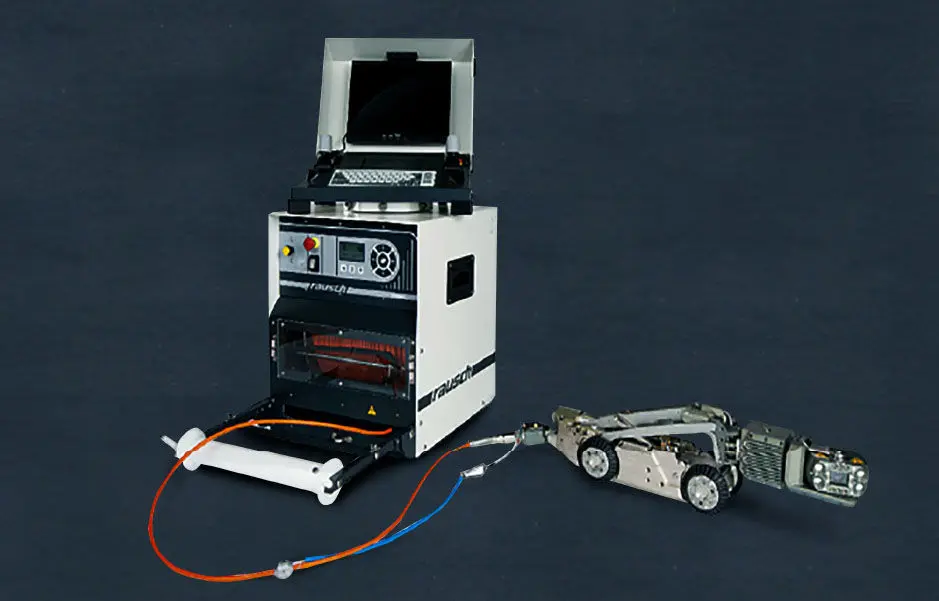

The only one in Japan that supports pipe diameters, it is possible to conduct maintenance surveys of a wide range of sewage pipes using a camera.

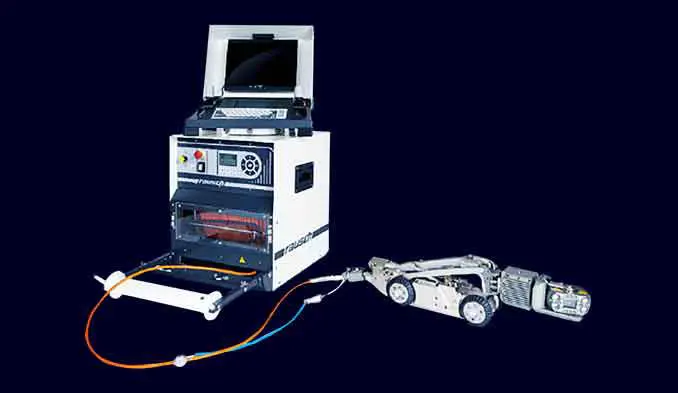

It is a robot that can be inserted from the sewer main and can take pictures of the situation inside the sewer pipe using a camera during sewer maintenance. A wide range of compatible pipe diameters, φ100 to φ2500mm, is the only one in Japan. With an electric lift, you can change the camera height according to the situation while driving powerfully.In addition, the function that automatically adjusts the left and right tilt while driving prevents rollovers and ensures stable driving. is possible. In addition, because of its compact design, it can be mounted on light vehicles.

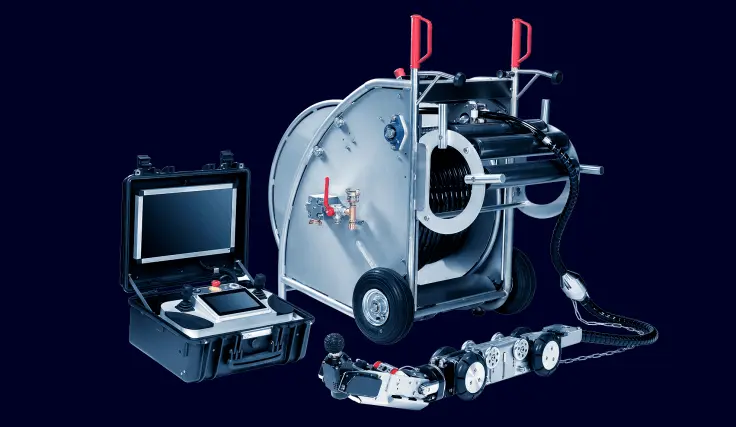

High-performance camera module capable of not only satellite surveys but also main surveys
This is a camera robot that can perform satellite surveys by inserting a camera into the sewage pipe from the sewer main side and taking pictures of the inside of the sewage pipe. This makes it possible to efficiently identify unknown cubicles and conduct maintenance surveys inside the sewer connection pipe. This machine is the only satellite survey robot equipped with an electric lift in the sewerage robot industry, so it prevents the camera lens from getting dirty while the robot is running. can also be done effectively. In addition, by connecting a high-pressure cleaning nozzle as an attachment, it is possible to simultaneously inspect the installation pipe and clean the inside of the pipe with a single sewage robot. Furthermore, it is a satellite system equipped with a mains investigation camera, and can also be used as a mains investigation robot camera.
Clear camera images do not reveal abnormal areas

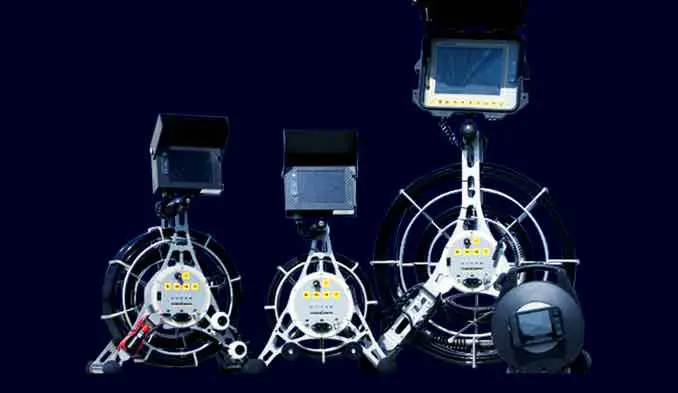

This is a camera robot that is inserted from a sewage pipe and used for investigating abnormalities inside the pipe and visually confirming maintenance robots for drilling work such as flexible cutters. A high-quality CCD camera is used to capture clear images. It is also highly waterproof and can be used for tap water applications.

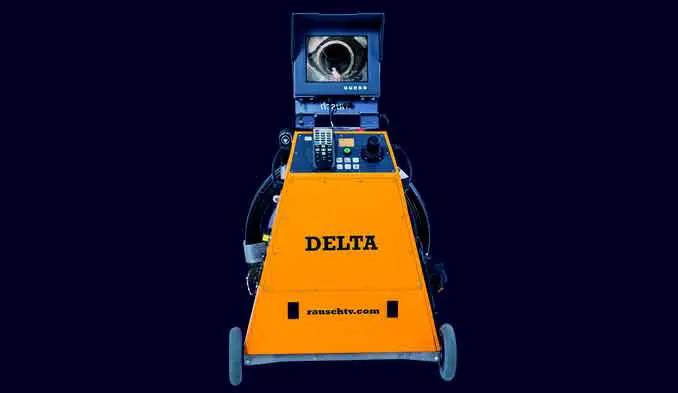

Minimize the required equipment with the all-system integrated type
This is a camera robot that is inserted from a sewage pipe and used for investigating abnormalities inside the pipe and visually confirming maintenance robots for drilling work such as flexible cutters. Not only can you use both a direct view camera and a side view camera, but you can also attach a high pressure cleaning nozzle attachment to clean the inside of pipes. What's more, the whole system is all-in-one, watertight and battery powered, making it suitable for outdoor use. Since the same camera as the main camera can be used as a side view camera, it is also compatible with MOBILE pro and M series.

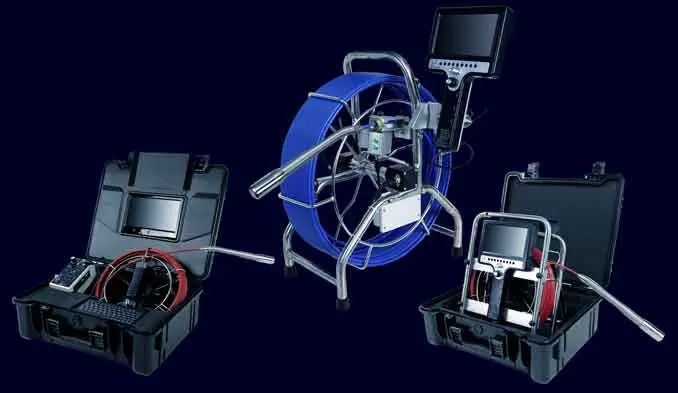

Easy to transport and easy to maintain
It is a robot that is inserted from a sewage pipe and used for investigating abnormalities in the pipe and visually confirming maintenance robots for drilling work such as flexible cutters. It is battery-powered and has good portability, and you can use multiple types of cameras with one cable. In addition, it is easy to separate the cable, controller, and camera, making it easy to maintain. We can deliver in a short time.

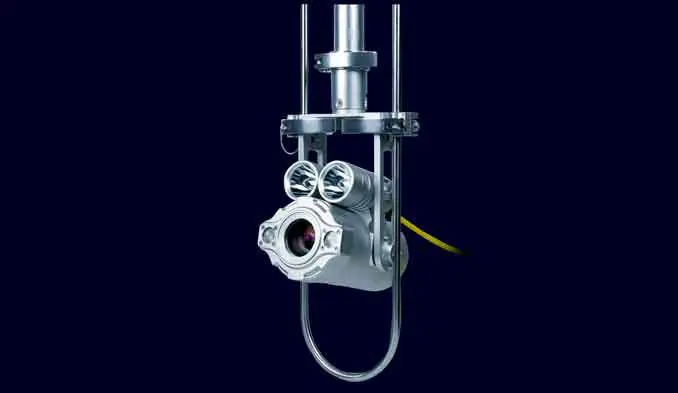

A camera that can shoot sharper and farther
This is a camera robot that can be inserted through a manhole and used to investigate the environment inside the sewage main, such as blockages, tree roots, and some pipe misalignment, using a camera with a zoom function to grasp the situation inside the main. Surveys can be performed simply without the need for a self-propelled robot for mains. You can shoot movies and still images with HD image quality, and you can also shoot with the camera from a distance with the zoom function. In addition, the vertical tilt operation is also possible, making it easy to see what you want to see. Furthermore, since you can enter characters on the screen, there is no need for editing work after shooting with the camera.
